Rebar Length Rules (2026) – Development & Lap Length

Expert Guide
Babu

Ensure structural safety by calculating precise bonding and splicing lengths for TMT bars per IS 456.

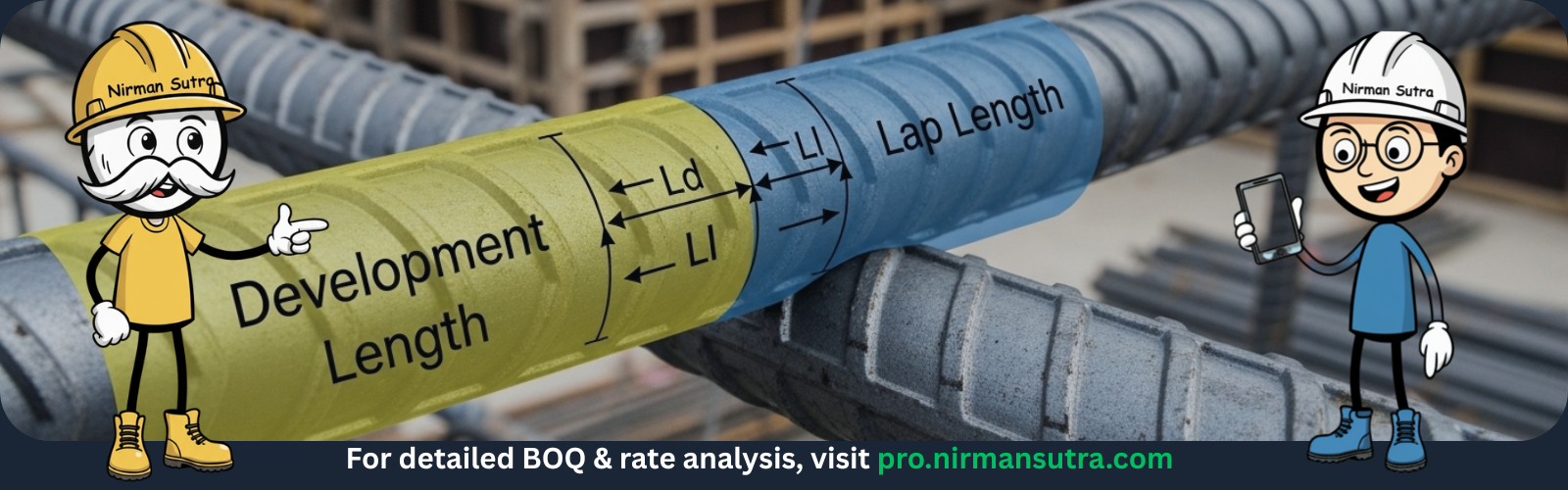

Overlapping rebar splicing (lapping) in a structural concrete column

⚡ Quick Answer

Development length (Ld) anchors bars into concrete junctions. Standard rule is 50D for tension and 40D for compression.

🛠️ How It Works

📐 Calculation Formula

Ld = (Bar Dia × 0.87 × Stress) / (4 × Bond Stress)
Standard Lap = 50 × Diameter (Tension)
Technical Diagram for rebar-calculator

🔗Related Calculators

📐

Rebar Detailing

⚡ Perfect cutting lengths

Get millimetre-perfect cutting lengths for reinforcement bars and stirrups. See Rebar Master for simple weight estimation.

Get Cutting Length
Try Now →
🏗️

Steel Quantity

⚡ Component-wise steel BOQ

Estimate total reinforcement steel needed for specific structural components based on concrete volume or exact bar spacing. Ideal for site-ready rebar counts.

Estimate Quantity
Try Now →

⚠️ Common Mistakes to Avoid

  • ✕Lapping all bars at the same section — always stagger laps (at least 50% staggered) to avoid structural failure.
  • ✕Using the same lap length for Column bottom vs Column mid — lap in the middle 50% of the column height.

🔍People Also Search / यो Calculator मा अक्सर खोजिने कुराहरू

IS 456 rebar lap length table 2026 update
Development length for M25 grade concrete calculation
Tension vs Compression lap length rules for slabs
Splicing requirements for RCC structures seismic
Dandiko overlap jodne niyam ra tarika
Sariya ki lapping kaise karein guide
Seismic lap zone for columns and beams Nepal
Mechanical couplers vs Rebar lapping cost
Minimum anchor length for beam into column
सरिया की लैपिंग कैसे करें?

❓ Frequently Asked Questions

Ld is the minimum length a bar must be embedded into a junction (like beam-column joint) to transfer its full tension stress safely. Typically 50D for M20 concrete.
For Tension laps (Slabs/Beams), it is typically 50 × Diameter. For 16mm, it equals 800mm (0.8 meters).
No. Laps should be provided in the middle 50% (central zone) of the column where the seismic forces are lowest.
